Honda CBR125RW - Owner's Manual > Vehicle Identification
Serial Numbers
The VIN and engine serial number are required when you register your motorcycle. They may also be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual.

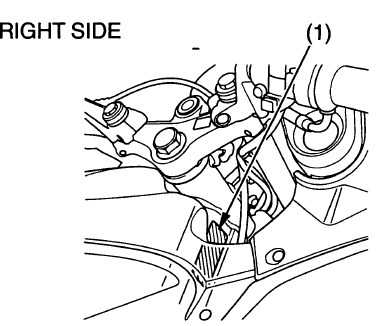

The VIN (vehicle identification number) is stamped on the right side of the steering head and also appears on the Safety Certification Label attached to the right side of the frame.
RIGHT SIDE
- VIN

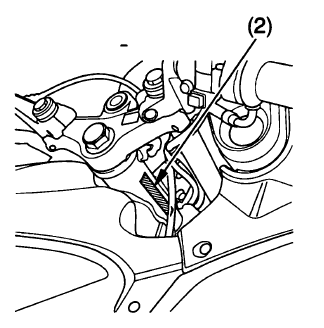

RIGHT SIDE
- VIN

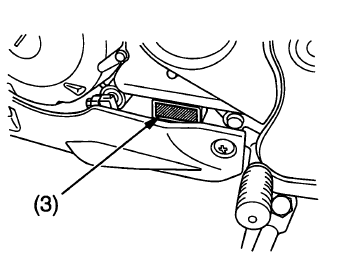

The engine number (3) is stamped on the left side of the crankcase.
LEFT SIDE
- engine number
Color Label & Code

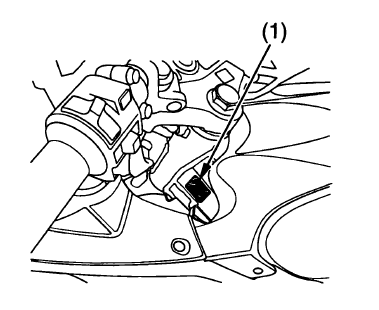

The color label is attached to left side of the steering head.
The color code is helpful when ordering replacement parts. You may record the color and code in the Quick Reference section at the rear of this manual.
LEFT SIDE
- color label
Specifications

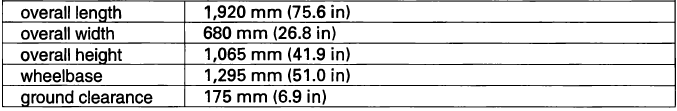

Dimensions

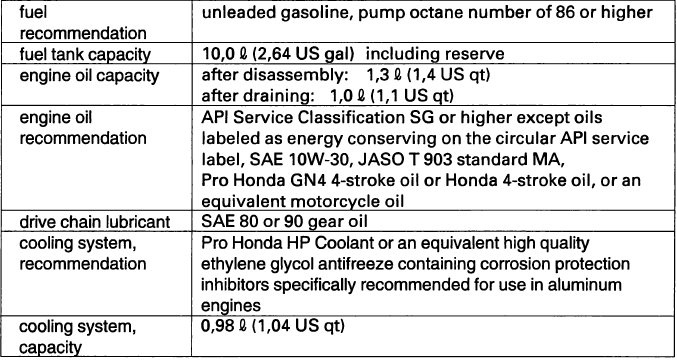

Fuel & Lubricants
Capacities

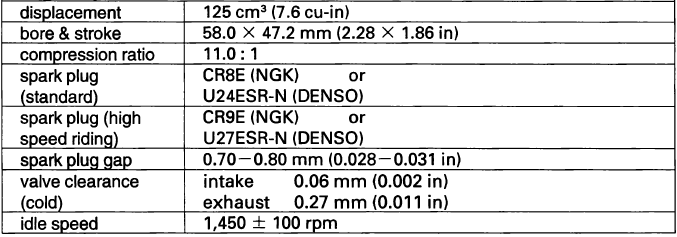

Engine Specifications

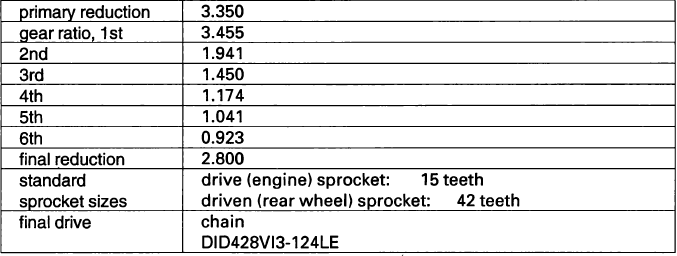

Power Transmission

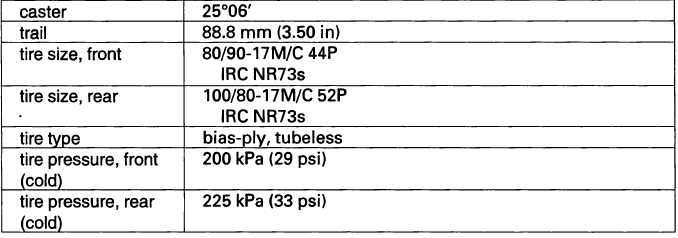

Chassis & Suspension
Electrical

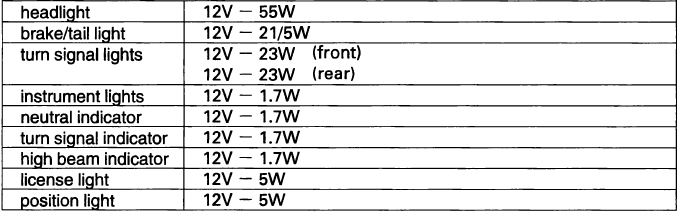

Lights
Fuses
Torque Specifications
