Peugeot Kisbee - Service manual > Special important points

Oil and fuel

This engine is designed to run on 95 or 98 unleaded fuel only.

Fuel pipes must absolutely be changed if there are any signs of wear, cracks, etc.

The air pipe between the air pump and the exhaust is specific owing to its heat resistance properties.

Should it be changed, replace it with a genuine pipe.

Petrol is highly inflammable, do not smoke in the working area and avoid proximity to flames or sparks.

Before carrying out any work, leave the engine to cool for at least 2 hours.

Tightening torques

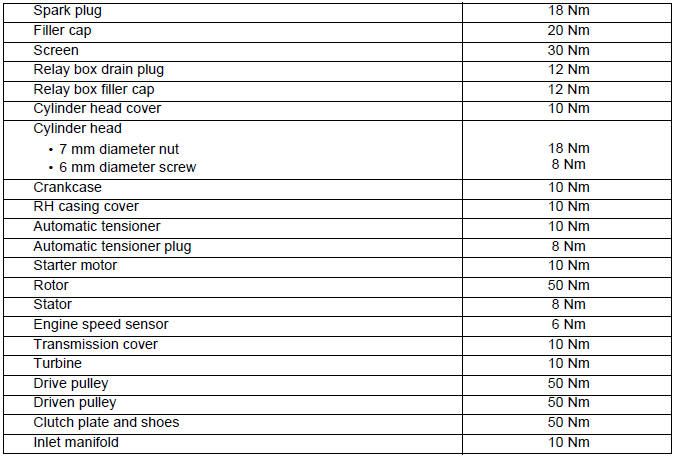

Engine part

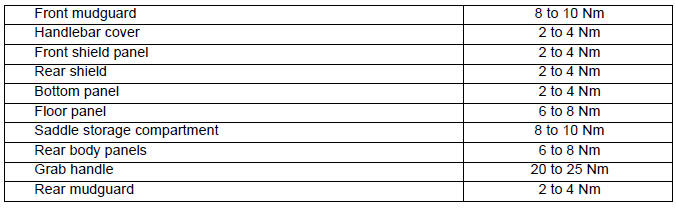

Body panels

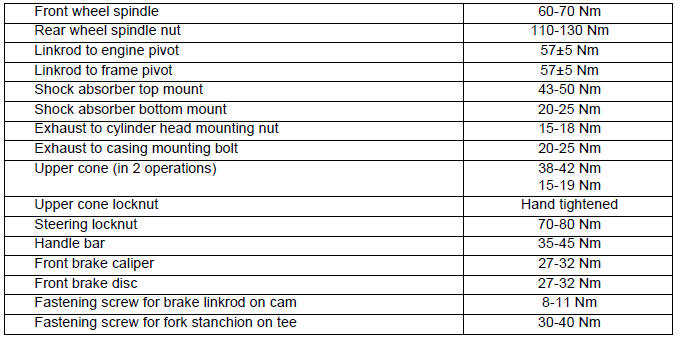

Cycle part

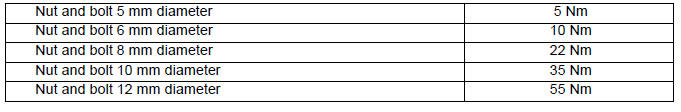

Standard

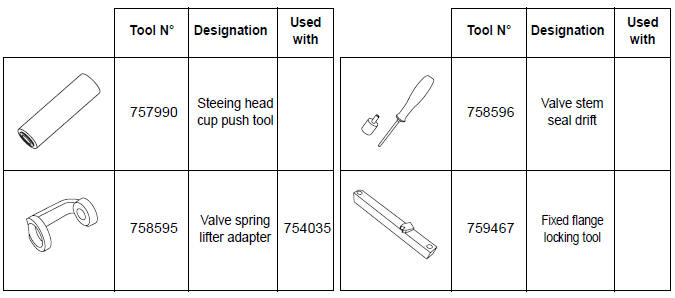

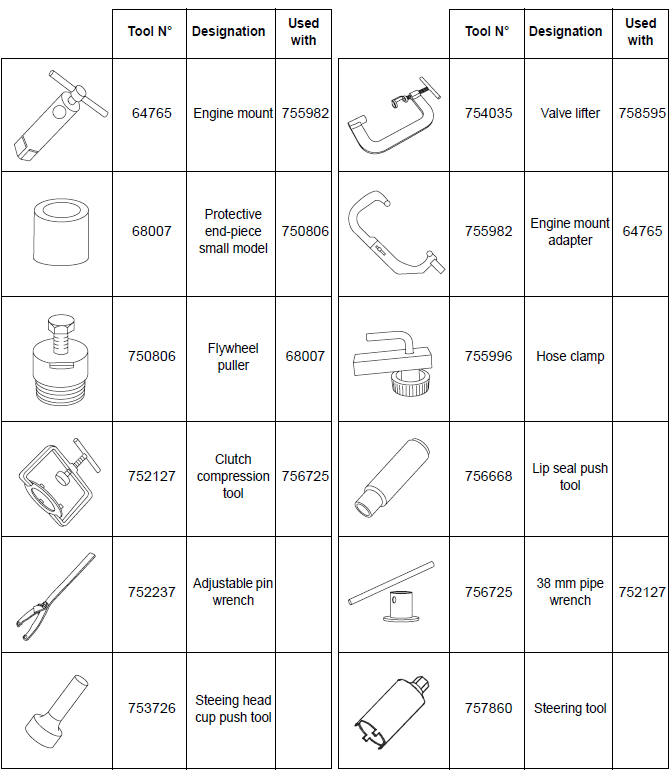

Special tools

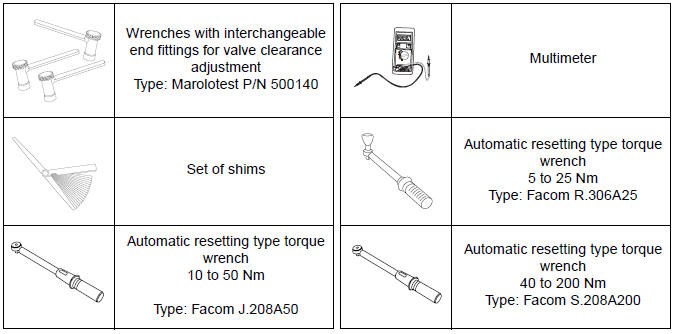

Standard tools

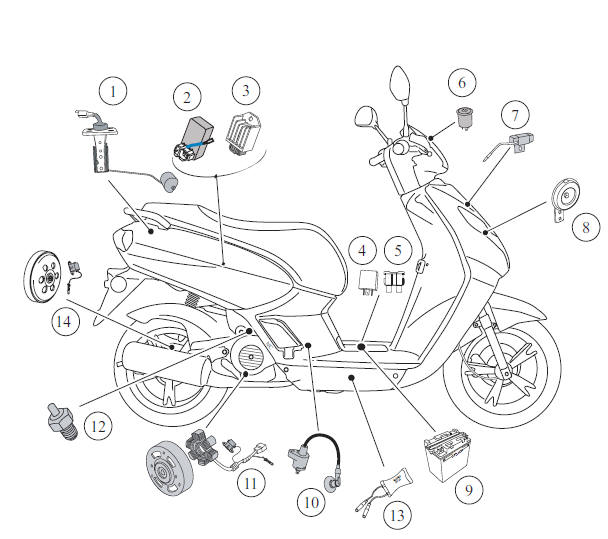

Location of components

1. Fuel gauge
2.  CDI unit
3. Regulator
4. Starter motor relay
5. Fuse
6. Flasher unit
7. Starter resistor
8. Horn
9. Battery
10. HT coil
11. Ignition sensor
12. Carburetor heater
13. Carburettor heater thermo-switch
14. Drive sensor
