KTM 890 Duke R - Owner's Manual > Shift lever

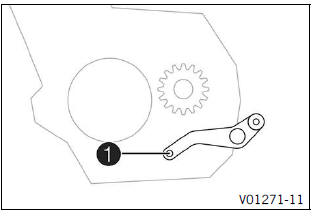

The shift lever 1 is mounted on the left side of the engine.

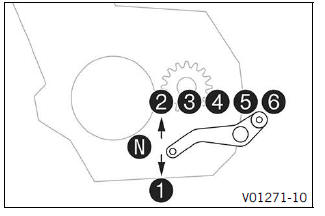

The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
Foot brake lever

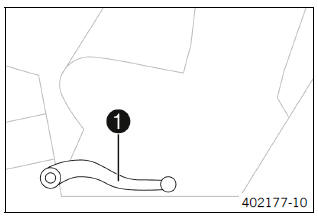

Foot brake lever 1 is located in front of the right footrest.
The rear brake is engaged with the foot brake lever.
Side stand

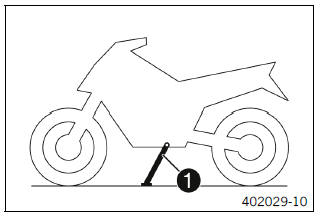

The side stand 1 is located on the left of the vehicle.
The side stand is used for parking the motorcycle.
Info
The side stand must be folded up during motorcycle use.
The side stand is coupled with the safety starting system; follow the riding instructions.
Possible states
- Side stand folded out - The vehicle can be supported on the side stand. The safety starting system is active.
- Side stand folded in - This position is mandatory when riding the motorcycle. The safety starting system is inactive.
