Husqvarna 401 Vitpilen - Owner's Manual > Installing the left side cover

Main work

• Position the side cover.

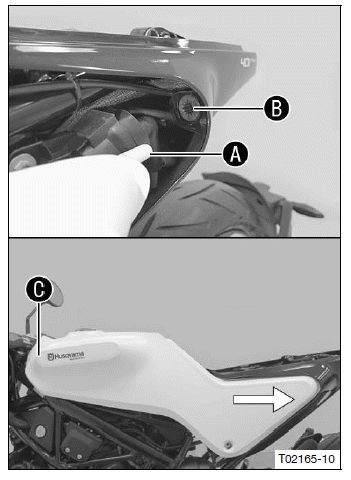

  The catch A engages in the bracket B.

• Engage side cover in area C.

• Mount and tighten screw 1.

Guideline

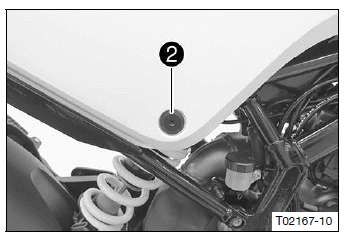

• Mount and tighten screw 2.

Guideline

• Mount screws 3 with bushings and tighten.

Guideline

Finishing work

• Mount the seat.

Removing the right side cover

Preparatory work

• Remove the seat.

Main work

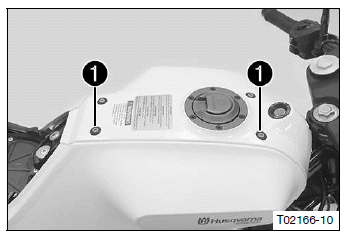

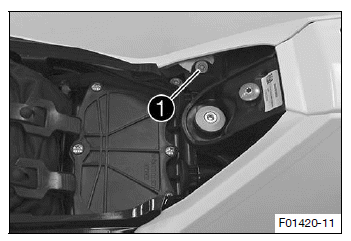

• Remove screws 1 with the bushings.

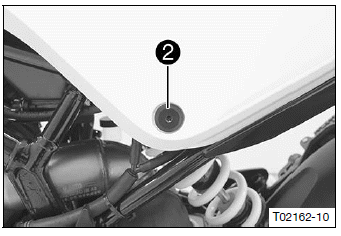

• Remove screw 2.

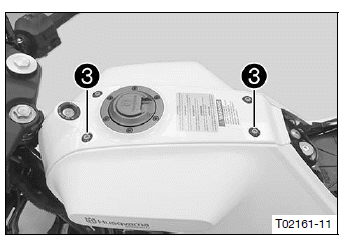

• Remove screw 3.

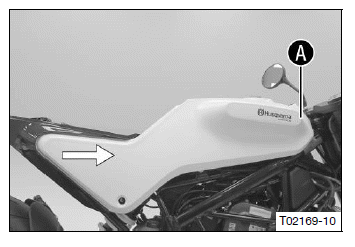

• Pull off holding lug in area A.
• Take off the side cover forwards.

Installing the right side cover

Main work

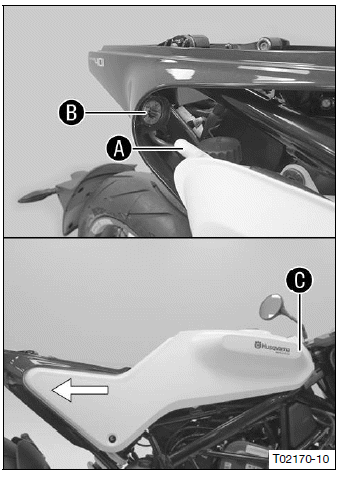

• Position the side cover.

  The catch A engages in the bracket B.

• Engage side cover in area C.

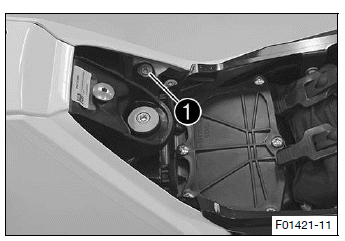

• Mount and tighten screw 1.

Guideline

• Mount and tighten screw 2.

Guideline

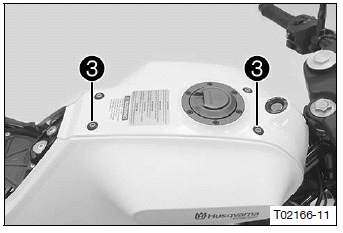

• Mount screws 3 with bushings and tighten.

Guideline

Finishing work

• Mount the seat.

Removing the license plate holder

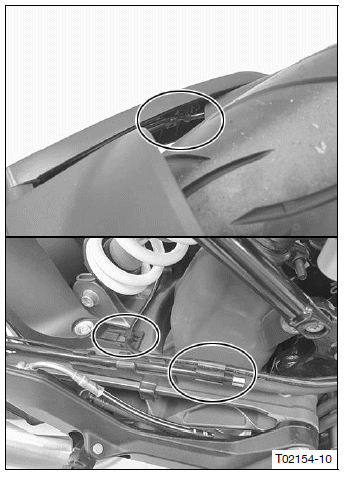

• Take the cable out of holders.

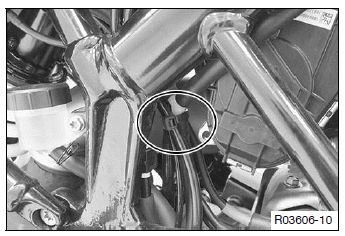

• Remove the cable tie.

• Disconnect plug-in connector 1.
• Expose the cable.

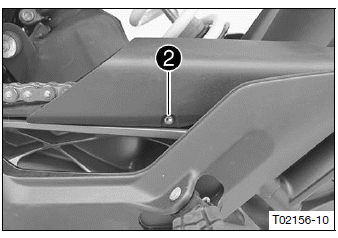

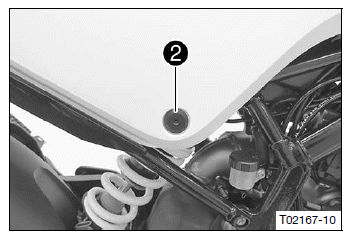

• Remove screw 2.

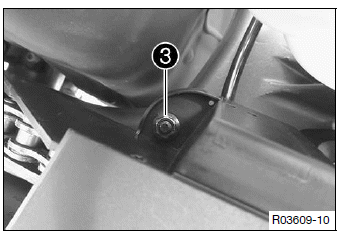

• Remove nut 3.

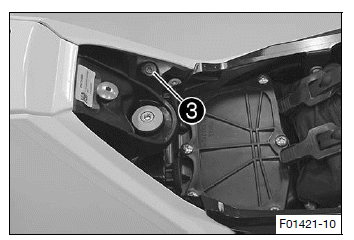

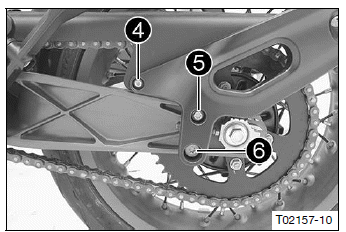

• Remove screws 4, 5 and 6.

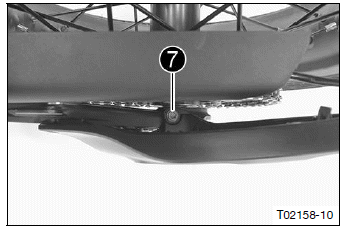

• Remove screw 7.
• Take off the license plate holder.
