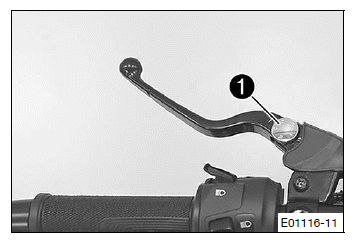

Adjusting the basic position of the hand brake lever

• Adjust the basic position of the hand brake lever to your hand size by turning adjusting wheel 1.

Info

Push the hand brake lever forward and turn the adjusting wheel.

Do not make any adjustments while riding.

Adjusting the basic position of the clutch lever

• Adjust the basic position of the clutch lever to your hand size by turning adjusting wheel 1.

Info

Push the clutch lever forward and turn the adjusting wheel.

Do not make any adjustments while riding.

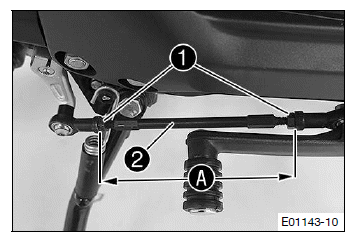

Adjusting the shift lever

Info

The adjustment range of the shift lever is limited.

• Loosen nuts 1.
• Adjust the shift lever by turning shift rod 2.

Guideline

Info

Make the same adjustments on both sides.

At least five screw threads must be screwed into the seating.

• Tighten nuts 1.

Info

After the nuts have been tightened, the bearings of the shift rod must be central and aligned identically to each other in order to ensure freedom of movement in the bearing shells.

• Check the shift lever to ensure it is functioning properly and can move freely.
